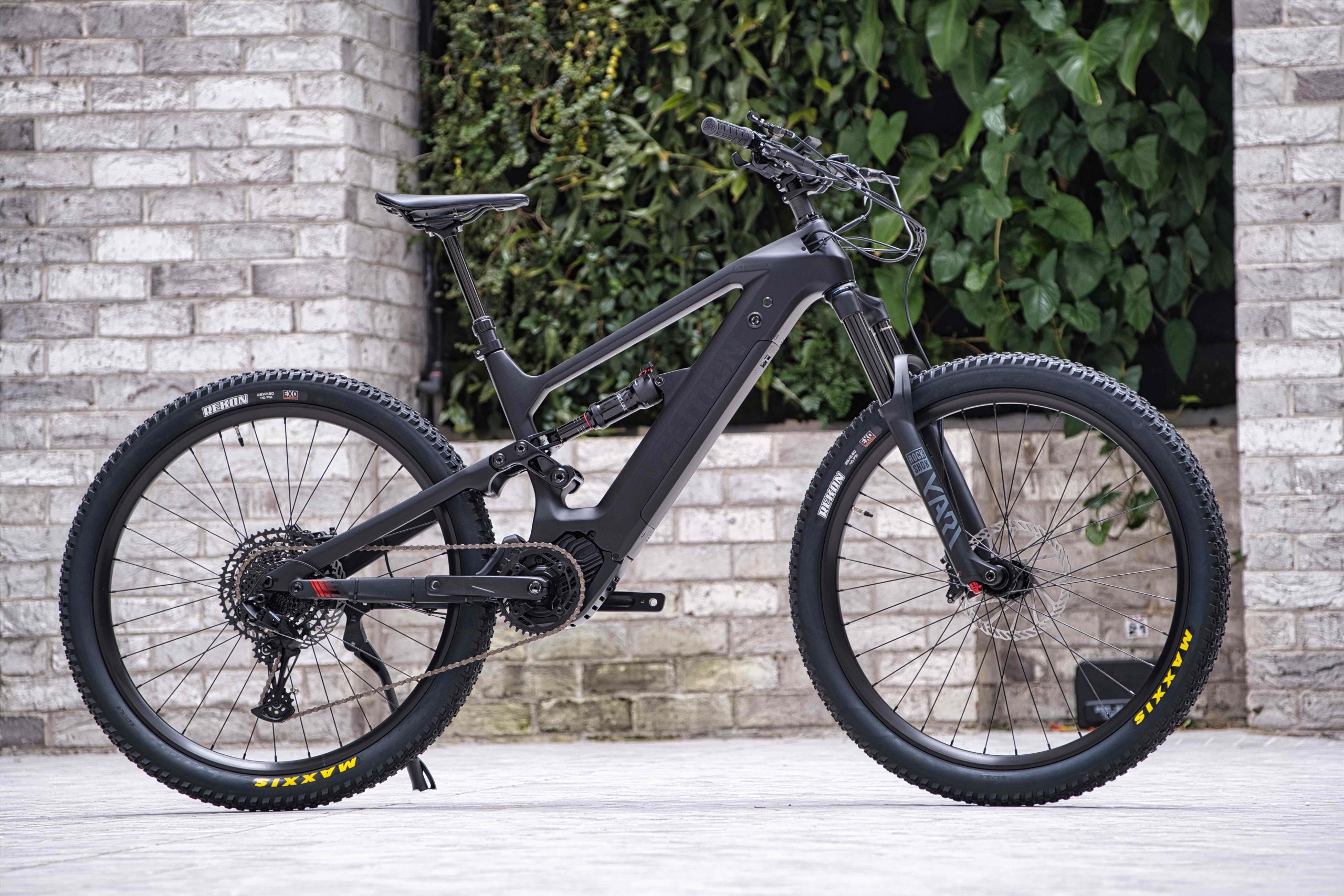

MAX Carbon M510 (eMTB)

MAX Carbon M510 (eMTB)

  • Category:
  • 25Kmh, 45kmh+, E-mountain Biking, Electric Bikes, Long Range Battery, Urban Commute
$7,699.00

eMTB M510 Performance; 160mm Travel; Sram 12 Spds

Clear
Quantity:

Secure and trusted checkout

Mastercard
Visa
American Express
Motor is the soul

power is fun!

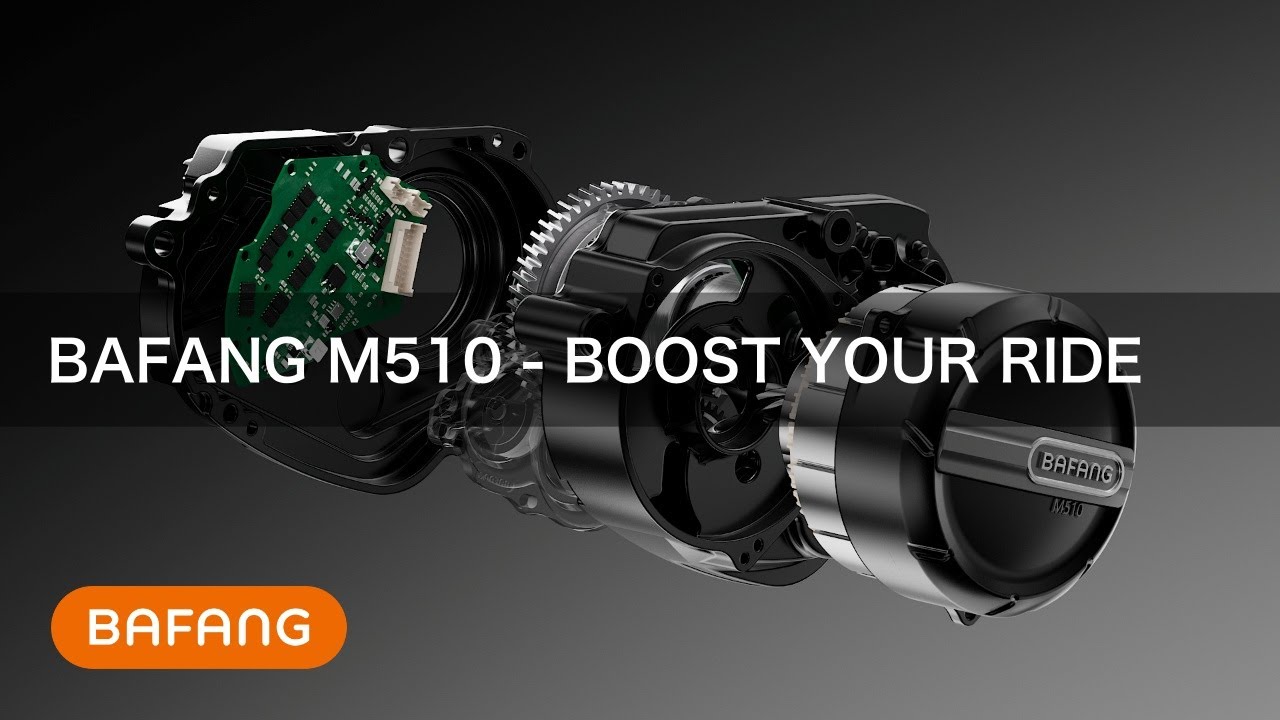

Volition has been working with Bafang closely in the past 5 years. Both M510 & M600 motor systems are their latest work of art with a much improved torque sensor delivery – the best we have ever tested! Power is meaningless without smooth delivery especially on the trails.

Volition engineering team has been testing motors on Australian trails for Bafang since 2018.

More about Bafang



Battery is the heart!

Power your Journey

At its heart, it’s a powerful Samsung 840Wh 48V battery fully integrated into the frame. The range is up to 100km although there are many factors that could affect this number; such as weight, wind and how hard you are pushing down the pedals …



48V system is also much more efficient and powerful than the more common 36V.

Buy the additional Battery Here

Why You Will Love This Bike !

TOP SPECS; Competitive price

We think that it is the best for the community for us to bring this awesome bike to Australia at the lowest prices possible. More riders, greater community.  There are many reasons why you should consider an ebike or eMTB.

  • DENGFU ENGINEERING FULL CARBON Frame
  • Bang for the bucks
  • Super plush suspension 160mm travel front and rear
  • Go shredding , the bike can take it
  • Under 25Kg Enduro e Bike
  • There is also a throttle !



Built in Australia ! Custom Build MAX CARBON

More Info

Specifications



Name                                       Description / VOLITION AU * Specifications are subject to change without notice
FRAME DENGFU 29er full carbon frame; 148mmx12mm Boost rear; 160mm frame travel
FORK Rockshox Yari RC 29 160mm Travel Air , 110x15mm Thru. Boost
SHOCK Rockshox Super deluxe select +; 210mmx55mm.
STEM Enduro Style 50mm
HANDLEBAR Generic Black; 780mm
GRIP WTB MTB Grips
SADDLE Generic
SEATPOST Zoom Droppost 150mm
FRONT BRAKE SRAM G2 4 PISTON 203MM ROTOR
REAR BRAKE SRAM G2 4 PISTON 203MM ROTOR
REAR DERAILLEUR SRAM RD-SX Eagle Derailleur 12spd
SHIFTER SRAM Sl-Sx Eagle Shifter 12spd
CASSETTE SRAM CS-PG-1210 Eagle 11t- 50T 12spd
DRIVE SRAM CN-SX Eagle 12spd
CHAINRING Bafang 38T eMTB chainring N.W.
CRANKSET Bafang MTB custom offset, 170mm, alloy
F. WHEEL SET 29er Boost, Alloy, eMTB Hub, 6 bolt, 110x15mm , p14 spokes, 28 holes, all black
R. WHEEL SET 29er Boost, Alloy, eMTB Hub, 6 bolt, 148x12mm , p14 spokes, 28 holes, all black
FRONT TYRE Maxxis Rekon 29×2.6inch
REAR TYRE Maxxis Rekon 29×2.6inch
INNER TUBES Schrader Style
MOTOR Bafang M600, 120Nm of Torque. Top Speed 45Kmh.
THROTTLE Yes. Installed. Left Hand Thumb Throttle
UI/DISPLAY UNIT Bafang CAN DISPLAYS
ANTI THEFT None
BATTERY & KEYS 48V 840Wh Samsung Semi-Integrated, keys operated lock, on-board charging port
CHARGER 48V Au Plug, 3amps
F. LIGHT None
R. LIGHTs None
Kick Stand None
PEDALS Generic MTB ready
PANNIER RACK None
MUD FENDERS None
FREE TOOL None
BOX SIZE 162cm x 30cm x 87cm ; 35Kg Box Weight. Bike Weight around 25kg
NOTE The workshop charge is $150 for the full assembly work + tuning. It is FREE to pick it up in a box.



Questions & Answers



  • Can I just use the throttle and not pedal at all ?

Yes. You can (un-restricted M600 version only). The throttle works like a mini e-moped ; please avoid to over-use the throttle especially the take-off.



  • How many years will the battery last ?

E.Bike batteries should last up to 4-5 years before dropping to 50% of the original capacity . It is a gradual process.



  • What distance can I get it out ?

It really depends. There are a few factors in play; how many hills, how hard are you pushing, the wind… etc.  Up to 100km.



  • Do you have dealers in other cities.

No. Volition E-Bike Australia is a factory to consumer / direct sale manufacturer based in Sydney. We’ve hammered down the price to be the lowest possible.



  • What if I have a problem with my e.bike in the future?

Most parts are just regular bike parts. You could get help from any bicycle store. If you are experiencing any electrical issue, we can remotely diagnose the issue and send replacement parts. We could also arrange a courier pick up for your bike and have it serviced in Sydney.



  • How can I put the bike together from the box.
Mid Drive vs Hub Motor

There are mainly two motor systems on the market



New e-motor and battery trends from Eurobike 2019: Amprio, Bafang ...

[Mid Drive]

  • Produces a lot of torque utilising the bike’s gear system; better for the hill climbing and efficient riding. All premium e.bikes use mid drive systems
  • Light weight, centred and a part of the frame; thus, no negative effect on the suspension performance
  • Riders need some hours on the bike to learn and understand how it works
  • Puts the stress on the bike chain; however, internal gear systems in general can solve this issue.





[Hub Motor Drive]

  • Affordable & popular on entry level e.bikes
  • Impose no stress on the drive system by not using them …
  • Not so much torque; poor leverage. Imagine grabbing the hinge of a door to open it instead of the door nob
  • Unsprung mass which means it negatively affects the suspension performance
  • Tyre / tube change is a hassle
  • Boring …





[ What do we love mid drive motors ? ]

  • better suspension performance, better handling, better weight distribution
  • very natural pedalling feeling
  • power! mid drive motors are more powerful /of more torque than hub motors.



FRAME ONLY; BUILD YOUR OWN



Is this Carbon E Mountain Bike (with the M500) any good ?



Are you hungry for more power ?! You could even get a 20% increase ! Exclusive Feature !

Bafang M600 1200Watts Upgrade
