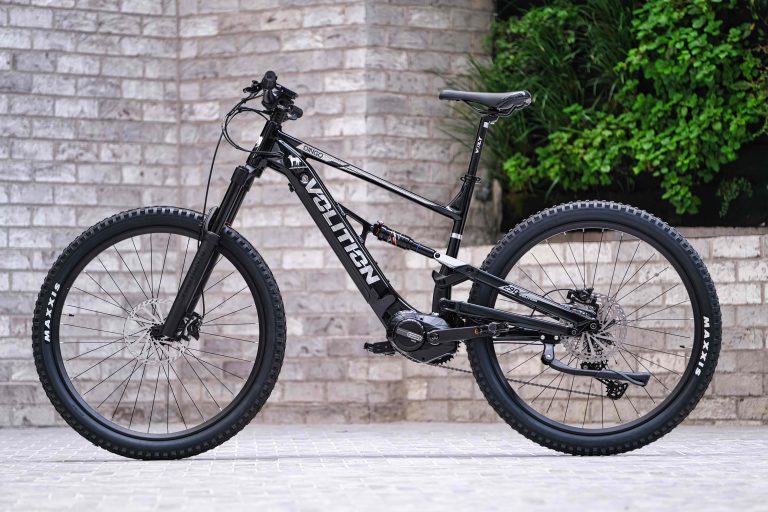

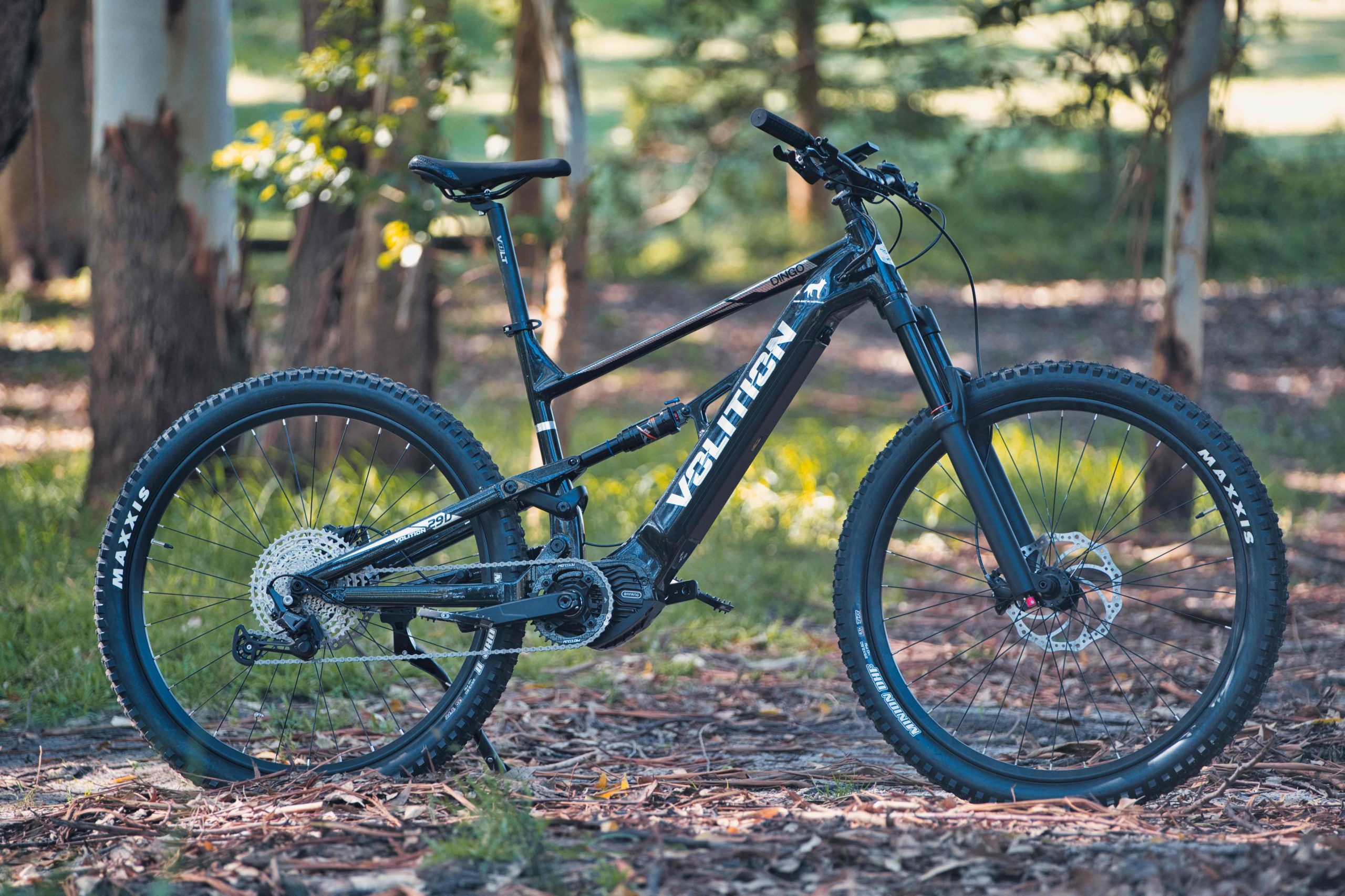

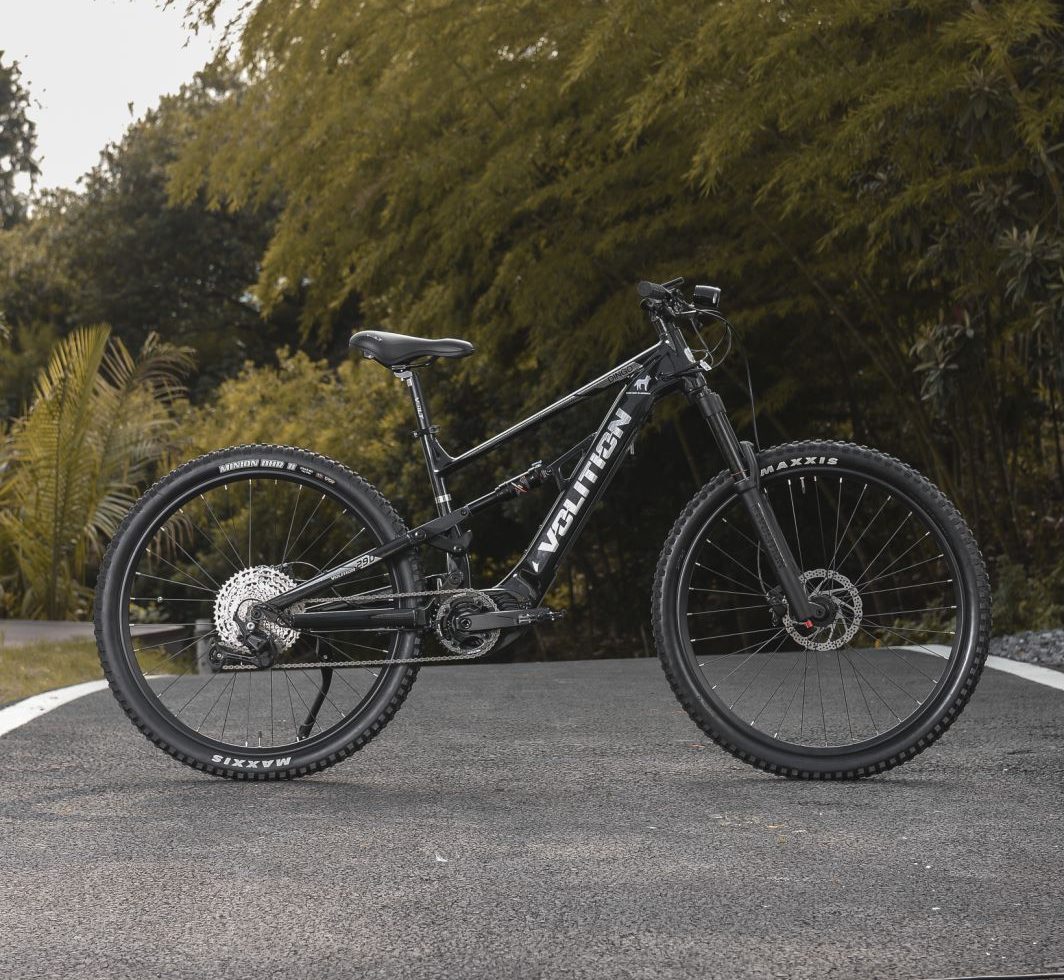

DINGO eMTB

DINGO eMTB

$5,999.00
  • 25Kmh
  • 40-45kmh+
  • Cargo
  • E-mountain Biking
  • Electric Bikes
  • Urban Commute

Best Value eMTB ; Developed and Assembled in Sydney

Clear
Quantity:

Buy now and pay later with

Hand Built In Australia

Designed and Engineered in Australia

Not only we designed & developed our new Max Dingo in Australia, we will hand build each and every Max Dingo electric bike in Sydney. The whole engineering process took us nearly 4 years. We were met with challenges and the schedule took a massive hit from the covid-19 chaos. The wait is finally over!





700Wh Battery

48V/1000W Power Performance

One of the hardest design challenge was to integrate the 700Wh battery while keeping the bike’s silhouette slim and elegant without looking like on “steroids”. We also applied a new manufacturing technique to smooth out welding marks on the top and give it a carbon-like finish.



48V 700Wh is the standard battery ; together with the BAFANG M510/M600 motor system, the bike is quiet , full of torque yet butter smooth !



Butter Smooth

whopping 185mm frame travel!

We made our own linkage. One of the original design goals for us was to create a SUV eMTB with the ability to shred hard on the trails and commute comfortably on the roads. It took us 6 months of 3D modelling to finesse the linkage design and tapping out the 184.8mm of rear wheel travel ! This is an industry leading number. Max dingo feels strong, plush and lively

  • 160mm Travel Air Fork (DNM)
  • 180mm* Travel Shock Air Shock (DNM)

touring & adventuring

The concept of "SUV" eBike

Why you will love this Max Dingo SUV eBike

  • Powerful Mid Drive Motor Up to 120Nm; our own software tune with even more power is also avail!
  • Beautiful Slim Frame with a 700Wh 48v battery or a 550Wh 52V (saving 1kg)
  • Amazing front and rear suspension system ; upgrades are also avail.
  • Heavy Duty Rack for the baby seats and cargo use
  • Australian designed and built! with imported parts.
  • Throttle !

More Info

Specifications and Sizes

Year 2023

Name                                       Description / VOLITION AU * Specifications are subject to change without notice
FRAME Designed & Assembled in Australia Volition 29er Aluminium frame; 148mmx12mm Boost rear; 185mm frame travel
FORK Custom 1600mm 29er Travel Air , 110x15mm Thru. Boost; Rebound Adj.
SHOCK DNM Air +; 210mmx53mm. Rebound adj.
STEM Enduro Style 35mm
HANDLEBAR Generic Black; 780mm
GRIP MTB Grips
SADDLE MTB Saddle
SEATPOST Rigid Post. Droppost is NOT included. However, we can add it to your bike for a fee.
FRONT BRAKE Shimano 2 PISTON 203MM ROTOR
REAR BRAKE Shimano 2 PISTON 203MM ROTOR
REAR DERAILLEUR Shimano 10 spd
SHIFTER Shimano 10 spd
CASSETTE Shimano 10 spd
DRIVE Chain 10 Spds KMC
CHAINRING 36T eMTB chainring N.W.
CRANKSET Bafang MTB custom offset, 170mm, alloy
F. WHEEL SET 29er Boost, Alloy, eMTB Hub, 6 bolt, 110x15mm , p14 spokes, 28 holes, Tubeless Ready
R. WHEEL SET 29er Boost, Alloy, eMTB Hub, 6 bolt, 148x12mm , p14 spokes, 28 holes; Tubeless ready
FRONT TYRE Maxxis Minion Tubeless ready ; DHF EXO
REAR TYRE Maxxis Minion Tubeless ready ; DHR EXO
INNER TUBES Schrader Style
MOTOR Bafang M600, 120Nm of Torque. Top Speed 45Kmh. Or Bafang M510
THROTTLE Yes. Installed. Left Hand Thumb Throttle with the M600 system
UI/DISPLAY UNIT Bafang CAN DISPLAYS DPC18
ANTI THEFT None
BATTERY & KEYS 48V 700Wh Samsung Semi-Integrated, keys operated lock, on-board charging port
CHARGER 4.5 Hour Charger
F. LIGHT Avail for purchase Contact us
R. LIGHTs Avail for purchase Contact us
Kick Stand Not included. Addtional Purchase
PEDALS included.
PANNIER RACK Avail for purchase Contact us
MUD FENDERS Avail for purchase
FREE TOOL Included.
BOX SIZE 162cm x 30cm x 87cm ; 35Kg Box Weight.
Bike Weight around 25kg
NOTE It is the customer’s responsibility to be aware of ebike regulations in Australia !











MAX (last generation) This new generation will be even more awesome!)
